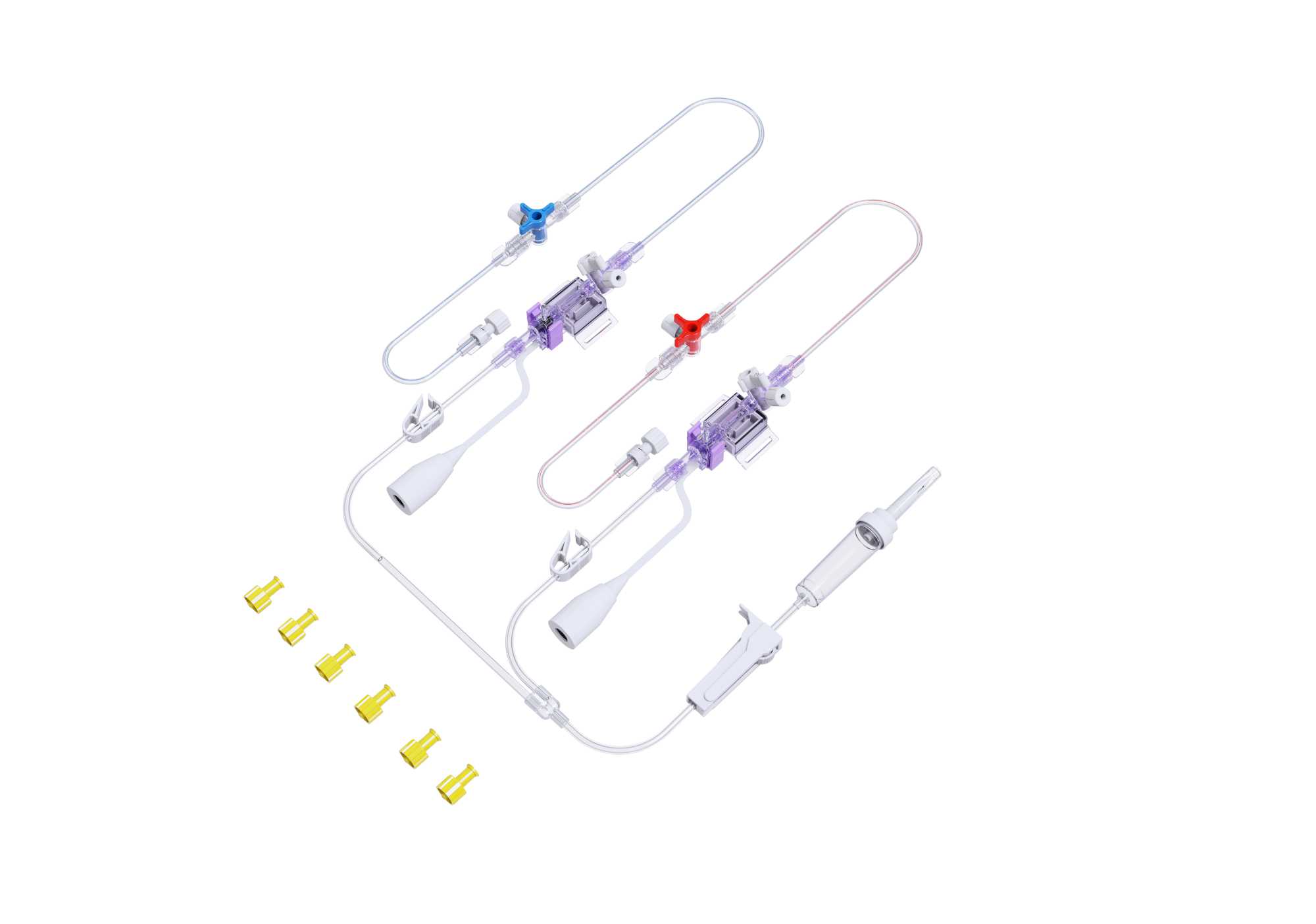

Pressure transducer model (Double-channel type)
Pressure transducer is a single-use medical device used to measure arterial blood pressure and venous blood pressure to provide clinical diagnosis and disease treatment. They are essential components of critical care and anesthesia monitoring systems, helping to ensure patient safety and optimal clinical outcomes.
Consistent and accurate pressure monitoring with pressure range: -4~40kPa (-30~300mmHg).
Nominal sensitivity: 5μV/V/mmHg
Sensitivity error:
Pressure range: -30 mmHg ~ + 50 mmHg, sensitivity error＜(± 1 mmHg + ± 1% of reading),
Pressure range: 50 mmHg ~ 300 mmHg, sensitivity error＜(± 3% of reading)
With built-in flush device to simplify priming the tube and flushing.
Different cable connectors for choices.
Pressure transducer model (Single-channel type)
Ref No. | Fixed/core component | Optional components | Cable connector | |
Single-Transducer | Transmission tube (1200mm and 300mm) | Single-perfusion device | ||
DPT0101 | √ | -- | -- | BD |
DPT0102 | √ | √ | √ | BD |
DPT0103 | √ | √ | -- | BD |
DPT0104 | √ | -- | √ | BD |
DPT0201 | √ | -- | -- | Philip |
DPT0202 | √ | √ | √ | Philip |
DPT0203 | √ | √ | -- | Philip |
DPT0204 | √ | -- | √ | Philip |
DPT0301 | √ | -- | -- | Abbott |
DPT0302 | √ | √ | √ | Abbott |
DPT0303 | √ | √ | -- | Abbott |
DPT0304 | √ | -- | √ | Abbott |
DPT0401 | √ | -- | -- | Argon |
DPT0402 | √ | √ | √ | Argon |
DPT0403 | √ | √ | -- | Argon |
DPT0404 | √ | -- | √ | Argon |
DPT0501 | √ | -- | -- | USB |
DPT0502 | √ | √ | √ | USB |
DPT0503 | √ | √ | -- | USB |
DPT0504 | √ | -- | √ | USB |
DPT0601 | √ | -- | -- | Utah |
DPT0602 | √ | √ | √ | Utah |
DPT0603 | √ | √ | -- | Utah |
DPT0604 | √ | -- | √ | Utah |
DPT0701 | √ | -- | -- | ELS |
DPT0702 | √ | √ | √ | ELS |
DPT0703 | √ | √ | -- | ELS |
DPT0704 | √ | -- | √ | ELS |
DPT0801 | √ | -- | -- | PVB |
DPT0802 | √ | √ | √ | PVB |
DPT0803 | √ | √ | -- | PVB |
DPT0804 | √ | -- | √ | PVB |
DPT0901 | √ | -- | -- | Mindray |
DPT0902 | √ | √ | √ | Mindray |
DPT0903 | √ | √ | -- | Mindray |
DPT0904 | √ | -- | √ | Mindray |
DPT1001 | √ | -- | -- | Edward |
DPT1002 | √ | √ | √ | Edward |
DPT1003 | √ | √ | -- | Edward |
DPT1004 | √ | -- | √ | Edward |
DPT1101 | √ | -- | -- | B Braun |
DPT1102 | √ | √ | √ | B Braun |
DPT1103 | √ | √ | -- | B Braun |
DPT1104 | √ | -- | √ | B Braun |
DPT1201 | √ | -- | -- | Merit |
DPT1202 | √ | √ | √ | Merit |
DPT1203 | √ | √ | -- | Merit |
DPT1204 | √ | -- | √ | Merit |
Pressure transducer model (Double-channel type)
Ref No. | Fixed/core component | Optional components | Cable connector | |
Double-Transducer | Transmission tube (1200mm and 300mm) | Double-perfusion device | ||
DPT2101 | √ | -- | -- | BD |
DPT2102 | √ | √ | √ | BD |
DPT2103 | √ | √ | -- | BD |
DPT2104 | √ | -- | √ | BD |
DPT2201 | √ | -- | -- | Philip |
DPT2202 | √ | √ | √ | Philip |
DPT2203 | √ | √ | -- | Philip |
DPT2204 | √ | -- | √ | Philip |
DPT2301 | √ | -- | -- | Abbott |
DPT2302 | √ | √ | √ | Abbott |
DPT2303 | √ | √ | -- | Abbott |
DPT2304 | √ | -- | √ | Abbott |
DPT2401 | √ | -- | -- | Argon |
DPT2402 | √ | √ | √ | Argon |
DPT2403 | √ | √ | -- | Argon |
DPT2404 | √ | -- | √ | Argon |
DPT2501 | √ | -- | -- | USB |
DPT2502 | √ | √ | √ | USB |
DPT2503 | √ | √ | -- | USB |
DPT2504 | √ | -- | √ | USB |
DPT2601 | √ | -- | -- | Utah |
DPT2602 | √ | √ | √ | Utah |
DPT2603 | √ | √ | -- | Utah |
DPT2604 | √ | -- | √ | Utah |
DPT2701 | √ | -- | -- | ELS |
DPT2702 | √ | √ | √ | ELS |
DPT2703 | √ | √ | -- | ELS |
DPT2704 | √ | -- | √ | ELS |
DPT2801 | √ | -- | -- | PVB |
DPT2802 | √ | √ | √ | PVB |
DPT2803 | √ | √ | -- | PVB |
DPT2804 | √ | -- | √ | PVB |
DPT2901 | √ | -- | -- | Mindray |
DPT2902 | √ | √ | √ | Mindray |
DPT2903 | √ | √ | -- | Mindray |
DPT2904 | √ | -- | √ | Mindray |
DPT21001 | √ | -- | -- | Edward |
DPT21002 | √ | √ | √ | Edward |
DPT21003 | √ | √ | -- | Edward |
DPT21004 | √ | -- | √ | Edward |
DPT21101 | √ | -- | -- | B Braun |
DPT21102 | √ | √ | √ | B Braun |
DPT21103 | √ | √ | -- | B Braun |
DPT21104 | √ | -- | √ | B Braun |
DPT21201 | √ | -- | -- | Merit |
DPT21202 | √ | √ | √ | Merit |
DPT21203 | √ | √ | -- | Merit |
DPT21204 | √ | -- | √ | Merit |
