About Us

Guidewire
Guidewire
Guidewire

Guidewire

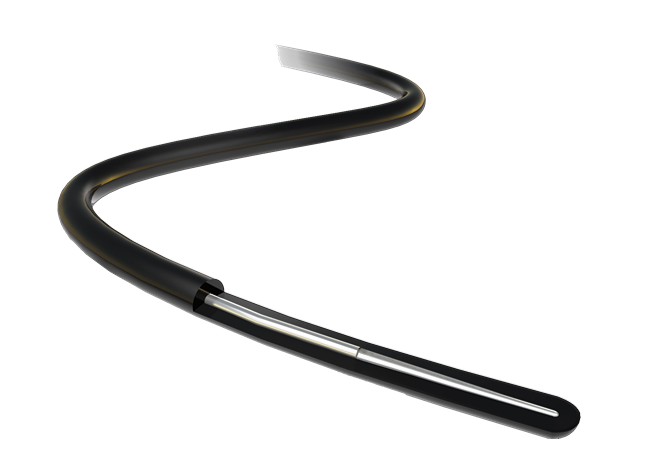

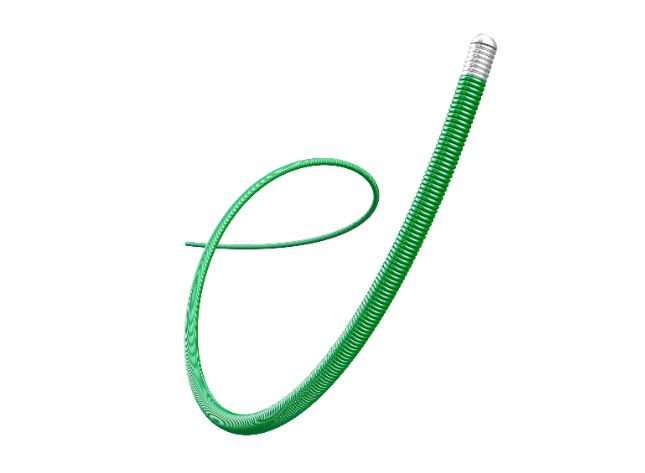

A guidewire is used for establishing a pathway from the puncture position to the lesion or the distal end through the lesion to assist other instruments in positioning, to facilitate smooth advancement and reduce the risk of vessel injury.

Product Features

  • Type I

  • SS304V core with PTFE coating: providing improved smooth device delivery and guide wire trackability

  • Nitinol core design: for excellent durability and tip shape retention

  • TTungsten based polymer jacket with hydrophilic coating: enables enhanced visualization and steering ability

  • Dual core technology: for smooth transition between Nitinol core to NiSS304V core



  • Type II

  • Special designed dispenser to achieve easy flush

  • High quality 304 stainless steel with PTFE coating

  • J tip radius : 3mm



  • Type III

  • High quality Niti core wire enables 1:1 torque control for better navigation and faster vessel selection

  • TPU jacket with tungsten providing excellent visibility under X-ray

  • Unique coating technology ensure a lubricant surface durable

Model Specifications

Type I

Catalog NO.Diameter
(Inch)		Length
(cm）		Tip ShapeCore DesignTip Radiopacity
Length (mm)		Tip LoadRail SupportProximal CoatingDistal
Coating
GW1403045AS020.014180cmStraightShaping Ribbon30Floppy
(0.2g)		ModeratePTFEHydrophilic
GW1403045BS020.014190cm30ModeratePTFEHydrophilic
GW1403045CS020.014300cm30ModeratePTFEHydrophilic
GW1403045AJ020.014180cmJ30ModeratePTFEHydrophilic
GW1403045BJ020.014190cm30ModeratePTFEHydrophilic
GW1403045CJ020.014300cm30ModeratePTFEHydrophilic
GW1403045AS040.014180cmStraight30Floppy
(0.4g)		ModeratePTFEHydrophilic
GW1403045BS040.014190cm30ModeratePTFEHydrophilic
GW1403045CS040.014300cm30ModeratePTFEHydrophilic
GW1403045AJ040.014180cmJ30ModeratePTFEHydrophilic
GW1403045BJ040.014190cm30ModeratePTFEHydrophilic
GW1403045CJ040.014300cm30ModeratePTFEHydrophilic
GW1403045AS060.014180cmStraight30Floppy
(0.6g)		ModeratePTFEHydrophilic
GW1403045BS060.014190cm30ModeratePTFEHydrophilic
GW1403045CS060.014300cm30ModeratePTFEHydrophilic
GW1403045AJ060.014180cmJ30ModeratePTFEHydrophilic
GW1403045BJ060.014190cm30ModeratePTFEHydrophilic
GW1403045CJ060.014300cm30ModeratePTFEHydrophilic
GW1403045AS080.014180cmStraight30Floppy
(0.8g)		ModeratePTFEHydrophilic
GW1403045BS080.014190cm30ModeratePTFEHydrophilic
GW1403045CS080.014300cm30ModeratePTFEHydrophilic
GW1403045AJ080.014180cmJ30ModeratePTFEHydrophilic
GW1403045BJ080.014190cm30ModeratePTFEHydrophilic
GW1403045CJ080.014300cm30ModeratePTFEHydrophilic
GW1403045AS100.014180cmStraight30Supersoft
(1g)		ModeratePTFEHydrophilic
GW1403045BS100.014190cm30ModeratePTFEHydrophilic
GW1403045CS100.014300cm30ModeratePTFEHydrophilic
GW1403045AJ100.014180cmJ30ModeratePTFEHydrophilic
GW1403045BJ100.014190cm30ModeratePTFEHydrophilic
GW1403045CJ100.014300cm30ModeratePTFEHydrophilic
GW1403045AS200.014180cmStraight30Soft
(2g)		ModeratePTFEHydrophilic
GW1403045BS200.014190cm30ModeratePTFEHydrophilic
GW1403045CS200.014300cm30ModeratePTFEHydrophilic
GW1403045AJ200.014180cmJ30ModeratePTFEHydrophilic
GW1403045BJ200.014190cm30ModeratePTFEHydrophilic
GW1403045CJ200.014300cm30ModeratePTFEHydrophilic


Type II

Ref. NO.O.D.
（Inch/mm)		Length
(cm)		Tip Shape
GW250SF0.025''
(0.63mm)		100Straight Tip
GW251SF150
GW252SF180
GW253SF260
GW250AF100Angled Tip
GW251AF150
GW252AF180
GW253AF260
GW250JF100J Tip
GW251JF150
GW252JF180
GW253JF260
GW280SF0.028''
(0.71mm)		100Straight Tip
GW281SF150
GW282SF180
GW283SF260
GW280AF100Angled Tip
GW281AF150
GW282AF180
GW283AF260
GW280JF100J Tip
GW281JF150
GW282JF180
GW283JF260
GW320SF0.032''
(0.81mm)		100Straight Tip
GW321SF150
GW322SF180
GW323SF260
GW320AF100Angled Tip
GW321AF150
GW322AF180
GW323AF260
GW320JF100J Tip
GW321JF150
GW322JF180
GW323JF260
GW350SF0.035''
(0.89mm)		100Straight Tip
GW351SF150
GW352SF180
GW353SF260
GW350AF100Angled Tip
GW351AF150
GW352AF180
GW353AF260
GW350JF100J Tip
GW351JF150
GW352JF180
GW353JF260
GW380SF0.038''
(0.97mm)		100Straight Tip
GW381SF150
GW382SF180
GW383SF260
GW380AF100Angled Tip
GW381AF150
GW382AF180
GW383AF260
GW380JF100J Tip
GW381JF150
GW382JF180
GW383JF260




Type III

Ref. NO.O.D.
（Inch/mm)		Length
(cm)		Tip Shape
HG353AF0.035''
(0.89mm)		15045° Angled
HG354AF180
HG355AF260
HG353JF150J
HG354JF180
HG355JF260
HG353SF150Straight
HG354SF180
HG355SF260
HG383AF0.038''
(0.97mm)		15045° Angled
HG384AF180
HG385AF260
HG383JF150J
HG384JF180
HG385JF260
HG383SF150Straight
HG384SF180
HG385SF260
